SC1408

LOW VOLTAGE/ BOOST DC-DC CONTROLLER

Semtech Corporation

SC1408 Features

* = 1.8V to 16.5V input range

* = Up to 10W output power

* = Preset 5V or adjustable output

* = Up to 300kHz switching frequency

* = 10µA max shutdown current

* = Industrial temperature range

* = SO-8 or MSOP-8 package APPLICATIONS

* = PDA Powe

SC1408 General Description

The SC1408 is a low voltage boost controller that operates from a 1.8V to 16.5V input range. A shutdown pin allows the user to turn the controller off reducing supply current to less than 2µA typical. Output voltage can be preset to 5V or is adjustable from 3V to 16.5V with a resistor divider. The c.

SC1408 Datasheet (157.45 KB)

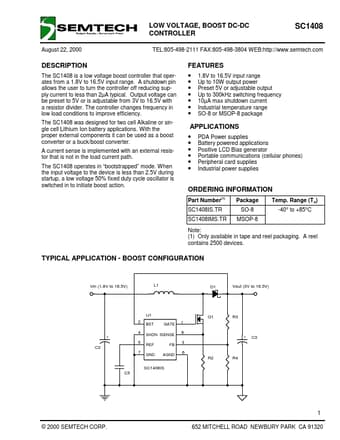

SC1408 Datasheet Preview — Preview of SC1408 PDF

Datasheet Details

Part number:

SC1408

Manufacturer:

Semtech Corporation

File Size:

157.45 KB

Description:

Low voltage/ boost dc-dc controller.
