STF202-22 Datasheet - Semtech Corporation

USB Upstream Port Filter & TVS

STF202-22 Features

* Bidirectional EMI/RFI filtering and line termination

* with integrated ESD protection ESD protection for USB power (VBUS) and data lines (D+ & D-) to IEC 1000-4-2 Level 4 Filtering and termination for two USB data lines Di

STF202-22 General Description

The STF202 is a combination EMI filter and line termination device with integrated TVS diodes for use on upstream USB ports. It is constructed using a proprietary technology that allows passive components and TVS diodes to be integrated in the same package. Each device will provide termination, filt.

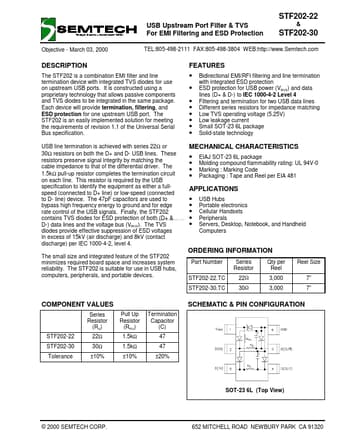

STF202-22 Datasheet (192.74 KB)

STF202-22 Datasheet Preview — Preview of STF202-22 PDF

Datasheet Details

Part number:

STF202-22

Manufacturer:

Semtech Corporation

File Size:

192.74 KB

Description:

Usb upstream port filter & tvs.
STF202-22 USB Upstream Port Filter & TVS For EMI Filtering and ESD Protection Objective - March 03, 2000 & STF202-30 TEL:805-498-2111 FAX:805-498-3.
