STF20N60M2-EP Datasheet, Mosfet, STMicroelectronics

STF20N60M2-EP Features

  • Mosfet Order code VDS RDS(on) max STF20N60M2-EP 600 V 0.278 Ω
  • Extremely low gate charge
  • Excellent output capacitance (COSS) profile
  • Very low turn-off switchi

PDF File Details

Part number:

STF20N60M2-EP

Manufacturer:

STMicroelectronics ↗

File Size:

267.21kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using MDmesh™ S(3) AM15572v1_no_tab M2 enhanced performance (EP) technology. Thank

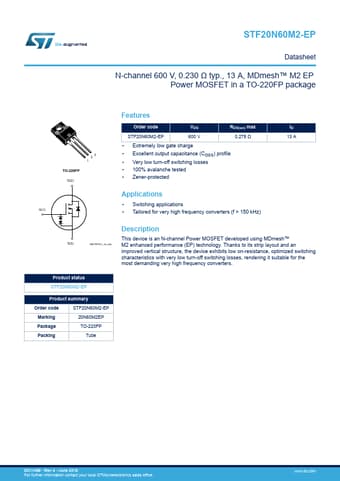

Datasheet Preview: STF20N60M2-EP 📥 Download PDF (267.21kb)
Page 2 of STF20N60M2-EP Page 3 of STF20N60M2-EP

STF20N60M2-EP Application

  • Applications
  • Switching applications
  • Tailored for very high frequency converters (f > 150 kHz) ID 13 A Description This device
