STF20N65M5 Datasheet - STMicroelectronics

N-channel Power MOSFET

STF20N65M5 General Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbase.

STF20N65M5 Datasheet (870.79 KB)

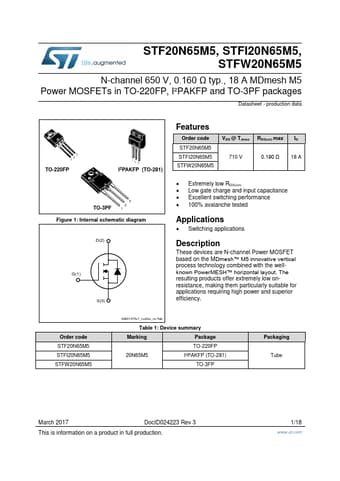

STF20N65M5 Datasheet Preview — Preview of STF20N65M5 PDF

Datasheet Details

Part number:

STF20N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

870.79 KB

Description:

N-channel power mosfet.
STF20N65M5, STFI20N65M5 N-channel 650 V, 0.160 Ω typ., 18 A MDmesh™ V Power MOSFET in TO-220FP and I2PAKFP packages Datasheet production da.
