STF20NF06 - N-CHANNEL POWER MOSFET

STF20NF06 Description

N-CHANNEL 60V - 0.06 Ω - 20A TO-220/TO-220FP STripFET™ II POWER MOSFET Table 1: General .
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STF20NF06 Features

* TYPE STP20NF06 STF20NF06
* STP20NF06 STF20NF06 Figure 1:Package RDS(on) < 0.07 Ω < 0.07 Ω ID 20 A 20 A(

STF20NF06 Applications

* DC MOTOR CONTROL
* DC-DC & DC-AC CONVERTERS Table 2: Order Codes Part Number STP20NF06 STF20NF06 MARKING P20NF06 F20NF06 PACKAGE TO-220 TO-220FP PACKAGING TUBE TUBE Table 3: ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot dv/dt (1) EAS (2) Tstg Tj to Rth value Par

📥 Download Datasheet

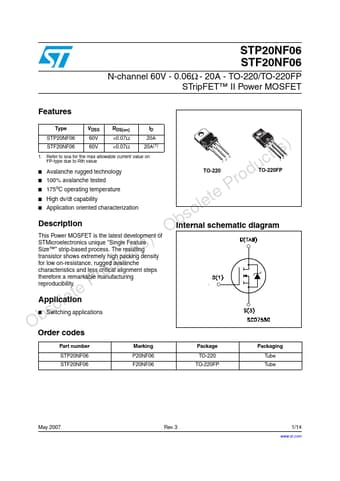

Preview of STF20NF06 PDF
