TCLAMP0602N

Low Capacitance TVS

Semtech Corporation

TCLAMP0602N Features

* Transient protection for high-speed data lines to Bellcore 1089 (Intra-Building) 100A (2/10μs) IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) L5, 95A (8/20μs) Protects two lines in common and differential mode Low capacitance (12pF line-t

TCLAMP0602N General Description

A TransClampΤΜ is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge E.

TCLAMP0602N Datasheet (216.64 KB)

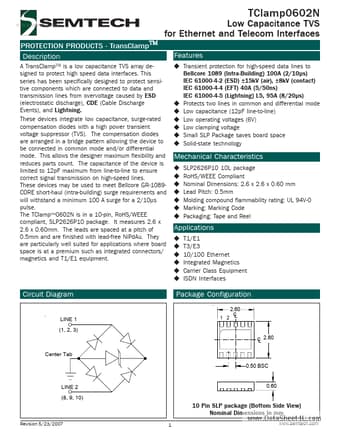

TCLAMP0602N Datasheet Preview — Preview of TCLAMP0602N PDF

Datasheet Details

Part number:

TCLAMP0602N

Manufacturer:

Semtech Corporation

File Size:

216.64 KB

Description:

Low capacitance tvs.
