TCLAMP3302N

Low Capacitance TVS

Semtech Corporation

TCLAMP3302N Features

* Transient protection for high-speed data lines to Bellcore 1089 (Intra-Building) 100A (2/10µs) IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) L5, 95A (8/20µs) Low capacitance (12pF line-to-line) Low operating voltages (3.3V) Low clamping

TCLAMP3302N General Description

A TransClampΤΜ is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge E.

TCLAMP3302N Datasheet (279.53 KB)

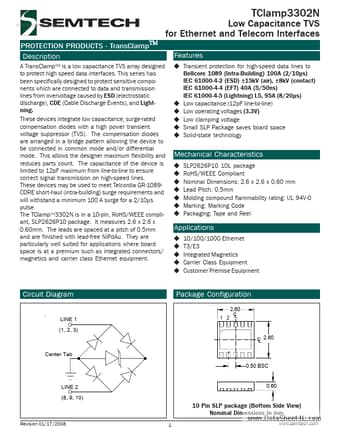

TCLAMP3302N Datasheet Preview — Preview of TCLAMP3302N PDF

Datasheet Details

Part number:

TCLAMP3302N

Manufacturer:

Semtech Corporation

File Size:

279.53 KB

Description:

Low capacitance tvs.
