TClamp2512N

Surge Protection

TClamp2512N Features

* Transient Protection to ŒŒ Bellcore 1089 (Intra-Building) 120A (8/20µs) ŒŒ IEC 61000-4-2 (ESD) 30kV (Air), 30kV (Contact) ŒŒ IEC 61000-4-4 (EFT) 4kV (5/50ns) ŒŒ IEC 61000-4-5 (Lightning) 120A (8/20µs)

* Small SLP package saves board space

* Working Vol

TClamp2512N General Description

TClamp®2512N and TClamp3312N are specifically designed to provide secondary surge and ESD protection for Ethernet and telecom interfaces. They integrate low capacitance, surge-rated steering diodes with a high power transient voltage suppressor (TVS) to provide up to 120A (tp=8/20us) of lightning s.

TClamp2512N Datasheet (576.89 KB)

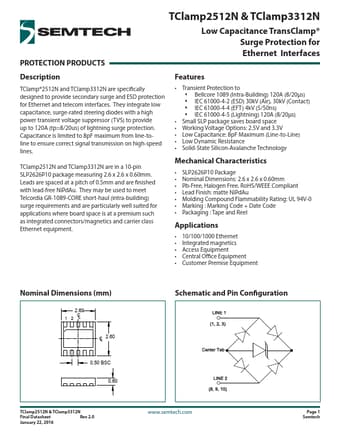

Preview of TClamp2512N PDF

Datasheet Details

Part number:

TClamp2512N

Manufacturer:

Semtech

File Size:

576.89 KB

Description:

Surge protection.
