Part number: ECLAMP2357N
Manufacturer: Semtech
File Size: 234.84KB
Download: 📄 Datasheet
Description: EMI Filter and ESD Protection
Part number: ECLAMP2357N
Manufacturer: Semtech
File Size: 234.84KB
Download: 📄 Datasheet
Description: EMI Filter and ESD Protection

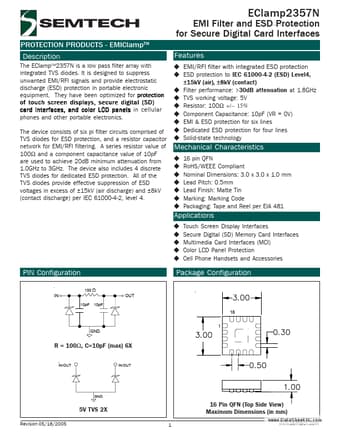

EMI/RFI filter with integrated ESD protection ESD protection to IEC 61000-4-2 (ESD) Level4,
±15kV (air), ±8kV (contact) Filter performance: >30dB attenuation at 1.8GH.
PIN Configuration
100 Ω
Package Configuration
OUT
IN
10pF 10pF
16 1
GND
R = 100Ω, C=10pF (max) 6X
IN/OUT IN/OUT
GN.
The EClamp 2357N is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI/RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment. They have been optimized for protection.
