EClamp3202A, ESD/EMI Protection

www.DataSheet4U.com ESD/EMI Protection for Microphone Ports PRELIMINARY .
The EClamp 3202A is a low pass filter array with integrated TVS diodes for ESD protection.

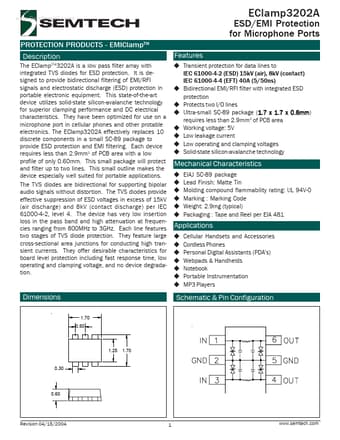

datasheet Preview Page 1 from Datasheet4u.com

EClamp3202A_SemtechCorporation.pdf

EClamp3202A Datasheet Preview — Preview of EClamp3202A PDF

Datasheet Details

Part number:

EClamp3202A

Manufacturer:

Semtech Corporation

File Size:

202.99 KB

Description:

ESD/EMI Protection

Features

* Transient protection for data lines to IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Bidirectional EMI/RFI filter with integrated ESD protection Protects two I/O lines 1.7 x 1.7 x 0.6mm Ultra-small SC-89 package (1.7 0.6mm) 2

Applications

* The TVS diodes are bidirectional for supporting bipolar audio signals without distortion. The TVS diodes provide effective suppression of ESD voltages in excess of 15kV (air discharge) and 8kV (contact discharge) per IEC 61000-4-2, level 4. The device has very low insertion loss in the pass band an
