EClamp2455K Datasheet - Semtech Corporation

EClamp2455K, ESD/EMI Protection

www.DataSheet4U.com ESD/EMI Protection for SIM Card PRELIMINARY .
The EClampTM2455K is combination EMI filter and line termination device with integrated TVS diodes for use on SIM Card interfaces on cellular phones a.

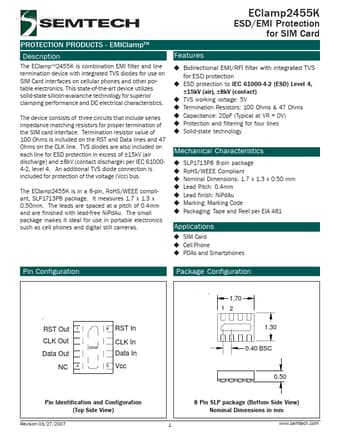

datasheet Preview Page 1 from Datasheet4u.com

EClamp2455K_SemtechCorporation.pdf

EClamp2455K Datasheet Preview — Preview of EClamp2455K PDF

Datasheet Details

Part number:

EClamp2455K

Manufacturer:

Semtech Corporation

File Size:

185.41 KB

Description:

ESD/EMI Protection

Features

* Bidirectional EMI/RFI filter with integrated TVS for ESD protection ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact) TVS working voltage: 5V Termination Resistors: 100 Ohms & 47 Ohms Capacitance: 20pF (Typical at VR = 0V) Protection and filtering for four line

Applications

* SIM Card Cell Phone PDAs and Smartphones Pin Configuration Package Configuration 1.70 1 2 RST Out CLK Out 1 8 RST In CLK In Data In 1.30 Gnd Data Out NC 4 5 0.40 BSC Vcc 0.50 Pin Identification and Configuration (Top Side View) Revision 03/27/2007 1 8 Pin SLP package (Bottom Side
