EClamp2454P, ESD/EMI Protection

PROTECTION PRODUCTS - EMIClampTM .
The EClampTM2454P is a (L-C) low pass filter array with integrated TVS diodes.

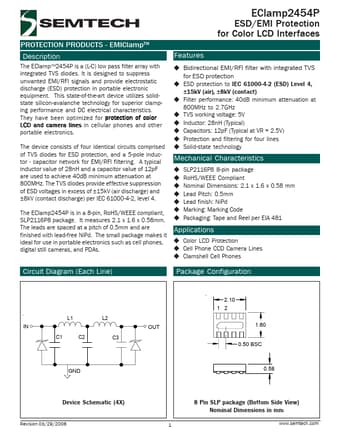

datasheet Preview Page 1 from Datasheet4u.com

EClamp2454P-Semtech.pdf

EClamp2454P Datasheet Preview — Preview of EClamp2454P PDF

Datasheet Details

Part number:

EClamp2454P

Manufacturer:

Semtech

File Size:

206.59 KB

Description:

ESD/EMI Protection

Features

* EClamp2454P ESD/EMI Protection for Color LCD Interfaces PRELIMINARY Bidirectional EMI/RFI filter with integrated TVS for ESD protection ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact) Filter performance: 40dB minimum attenuation at 800MHz to 2.7GHz TVS working vo

Applications

* Color LCD Protection Cell Phone CCD Camera Lines Clamshell Cell Phones Circuit Diagram (Each Line) Package Configuration L1 L2 IN C1 C2 C3 OUT GND 2.10 12 1.60 0.50 BSC 0.58 Device Schematic (4X) Revision 03/29/2006 8 Pin SLP package (Bottom Side View) Nominal Dimensions in mm 1 w
