EClamp2410P Datasheet - Semtech

EClamp2410P, ESD Protection Device

PROTECTION PRODUCTS - EMIClampTM .
The EClampTM2410P is a combination EMI ﬁlter and line termination device with integrated TVS diodes for use on Multimedia Card interfaces.

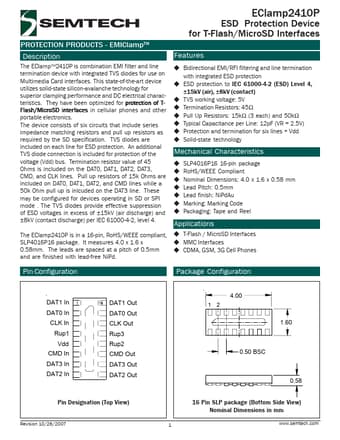

datasheet Preview Page 1 from Datasheet4u.com

EClamp2410P-Semtech.pdf

EClamp2410P Datasheet Preview — Preview of EClamp2410P PDF

Datasheet Details

Part number:

EClamp2410P

Manufacturer:

Semtech

File Size:

212.63 KB

Description:

ESD Protection Device

Features

* Bidirectional EMI/RFI ﬁltering and line termination with integrated ESD protection ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact) TVS working voltage: 5V Termination Resistors: 45Ω Pull Up Resistors: 15kΩ (3 each) and 50kΩ Typical Capacitance per Line: 12pF (VR = 2.5V) Pr

Applications

* T-Flash / MicroSD Interfaces MMC Interfaces CDMA, GSM, 3G Cell Phones Pin Conﬁguration Package Conﬁguration D AT 1 In 1 D AT0 In C L K In R up1 Vd d C MD In D AT3 In D AT2 In 16 D AT1 O u t D AT0 O u t C LK Out R up3 R up2 C MD Out D AT3 O u t D AT2 O u t 12 4.00 1.60 0.50 BSC 0.58 Pin Des
