EClamp2456P, ESD/EMI Protection

PROTECTION PRODUCTS - EMIClampTM .
The EClampTM2456P is a (L-C) low pass filter array with integrated TVS diodes.

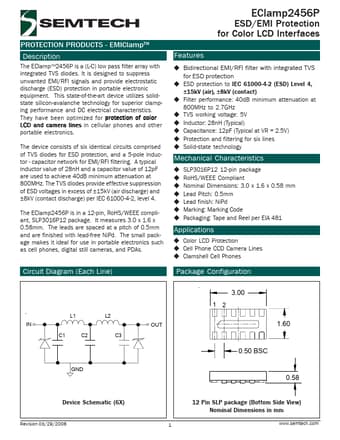

datasheet Preview Page 1 from Datasheet4u.com

EClamp2456P-Semtech.pdf

EClamp2456P Datasheet Preview — Preview of EClamp2456P PDF

Datasheet Details

Part number:

EClamp2456P

Manufacturer:

Semtech

File Size:

209.54 KB

Description:

ESD/EMI Protection

Features

* EClamp2456P ESD/EMI Protection for Color LCD Interfaces PRELIMINARY Bidirectional EMI/RFI filter with integrated TVS for ESD protection ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact) Filter performance: 40dB minimum attenuation at 800MHz to 2.7GHz TVS working vo

Applications

* Color LCD Protection Cell Phone CCD Camera Lines Clamshell Cell Phones Package Configuration L1 L2 IN C1 C2 C3 OUT GND 3.00 12 1.60 0.50 BSC 0.58 Device Schematic (6X) Revision 03/29/2006 12 Pin SLP package (Bottom Side View) Nominal Dimensions in mm 1 www. semtech. com PROTECTION P
