EClamp2422N Datasheet - Semtech

EClamp2422N, ESD/EMI Protection

PROTECTION PRODUCTS - EMIClampTM .
The EClampTM2422N is a (C-L-C) low pass filter array with integrated TVS diodes.

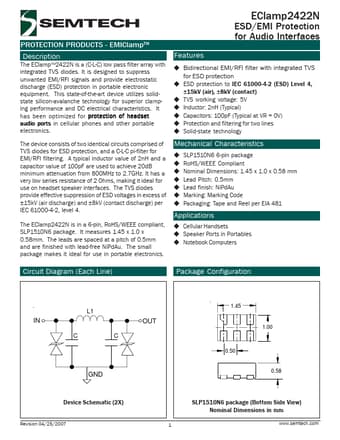

datasheet Preview Page 1 from Datasheet4u.com

EClamp2422N-Semtech.pdf

EClamp2422N Datasheet Preview — Preview of EClamp2422N PDF

Datasheet Details

Part number:

EClamp2422N

Manufacturer:

Semtech

File Size:

164.09 KB

Description:

ESD/EMI Protection

Features

* EClamp2422N ESD/EMI Protection for Audio Interfaces PRELIMINARY Bidirectional EMI/RFI filter with integrated TVS for ESD protection ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact) TVS working voltage: 5V Inductor: 2nH (Typical) Capacitors: 100pF (Typical at VR

Applications

* Cellular Handsets Speaker Ports in Portables Notebook Computers Circuit Diagram (Each Line) Package Configuration L1 IN OUT CC GND 1 1.45 0.50 1.00 0.58 Device Schematic (2X) Revision 04/25/2007 SLP1510N6 package (Bottom Side View) Nominal Dimensions in mm 1 www. semtech. com PROTECTI
