EClamp2122S - USB Downstream Port Filter & TVS

Semtech

EClamp2122S Description

EClamp2122S USB Downstream Port Filter & TVS For EMI Filtering and ESD Protection PROTECTION PRODUCTS - EMIClamp® .
The EClamp®2122S is combination EMI filter and line termination device with integrated TVS diodes for use on USB 2.

EClamp2122S Features

* EMI/RFI filtering and line termination with integrated ESD protection ESD protection for USB power (VBUS) and data lines (D+ & D-) to IIEC 61000-4-2 (ESD), ±25kV (air), ±20kV (contact) Filtering and termination for two USB data lines Series resistors for impedance matching Integrated pull

EClamp2122S Applications

* USB 1.1 Interfaces USB Hubs Printers Monitors Servers, Desktop, and Notebook computers Circuit Diagram Pin Configuration C1 C2 C1 C2 Revision 1/24/2011 1 (Top Side View) www. semtech. com PROTECTION PRODUCTS Absolute Maximum Rating Rating Steady-State Power ESD Air Discharge per IEC 6

📥 Download Datasheet

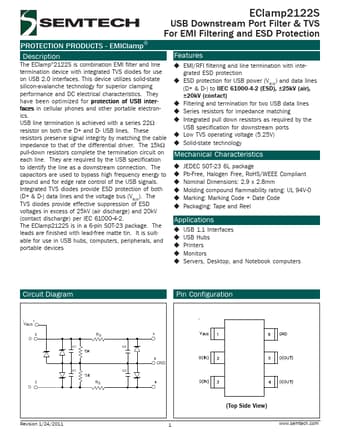

EClamp2122S Datasheet Preview — Preview of EClamp2122S PDF
