GS3140

Multi-Rate Adaptive 3G SDI Equalizer

GS3140 Features

* Multi-standard operation at rates between 1Mb/s and 2.97Gb/s

* SMPTE ST 424, SMPTE ST 292 and SMPTE ST 259 compliant

* AES10 (MADI) compatible

* Industry leading cable reach, with automatic cable equalization for different lengths of cable

* Performance opti

GS3140 General Description

The GS3140 is a high-speed BiCMOS device designed to equalize and restore signals received over cable. The device is designed to support SMPTE ST 424, SMPTE ST 292, SMPTE ST 259 and AES10 (MADI), and it is optimized for performance at 125Mb/s, 270Mb/s, 1.485Gb/s, and 2.97Gb/s. The device supports MA.

GS3140 Datasheet (585.43 KB)

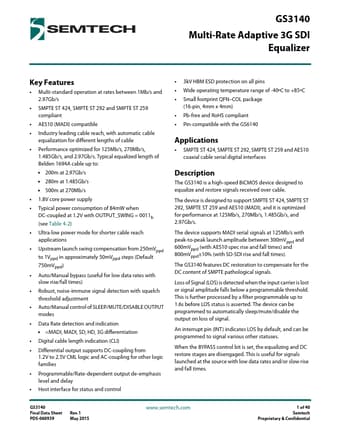

Preview of GS3140 PDF

Datasheet Details

Part number:

GS3140

Manufacturer:

Semtech

File Size:

585.43 KB

Description:

Multi-rate adaptive 3g sdi equalizer.
