GS3005ELD, GS3005ELD-GOOD - Schottky Barrier Diode

GOOD-ARK

GS3005ELD Description

.
Planar Maximum Efficiency General Application (MEGA) schottky barrier diode with an integrated guard ring for stress protection encapsulated in a SOD-.

GS3005ELD Features

* SOD-923 Package
* Low forward voltage
* Forward current: 0.5A
* Reverse Voltage 30V
* MSL: Level 1

GS3005ELD Applications

* Ultra high-speed switching
* Voltage clamping
* Protection circuits
* Low voltage rectification
* High efficiency DC-to-DC conversion

📥 Download Datasheet

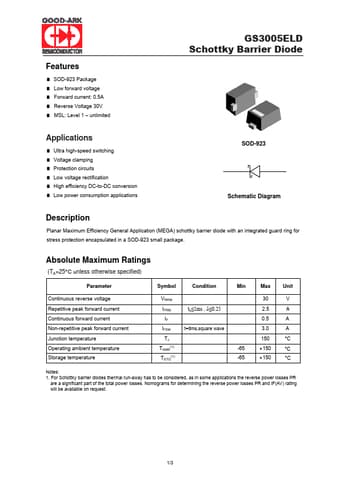

GS3005ELD Datasheet Preview — This datasheet PDF includes multiple part numbers: GS3005ELD, GS3005ELD-GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: GS3005ELD, GS3005ELD-GOOD
Manufacturer: GOOD-ARK
File Size: 494.79 KB
Datasheet: GS3005ELD-GOOD-ARK.pdf
Description: Schottky Barrier Diode
Note: This datasheet PDF includes multiple part numbers: GS3005ELD, GS3005ELD-GOOD.
Please refer to the document for exact specifications by model.
