GS3010

Hybrid

GS3010 Features

* Gennum’s LS509 3 stage amplifier

* independent preamp can be used as telecoil preamplifier

* four “must use” capacitors mounted on hybrid

* choice of 3 resistors to set transducer current

* easy assembly and high reliability DESCRIPTION The hybrid consists

GS3010 General Description

The hybrid consists of an LS509 amplifier, four capacitors, and two selectable bias resistors. The values of the capacitors assure proper operation of the circuit for the most commonly required frequency responses. If a different frequency response is required, external components can be easily conn.

GS3010 Datasheet (119.20 KB)

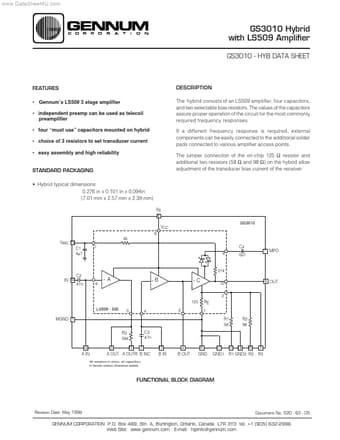

Preview of GS3010 PDF

Datasheet Details

Part number:

GS3010

Manufacturer:

Gennum

File Size:

119.20 KB

Description:

Hybrid.
