GS3023, CIC Size DynamEQ I Dynamic Equalizer

www.DataSheet4U.com CIC Size DynamEQ® I Dynamic Equalizer - Class D GS3023 - DATA SHEET .
DynamEQ® I (GS3023) hybrid is a dual channel level dependent input compression amplifier.

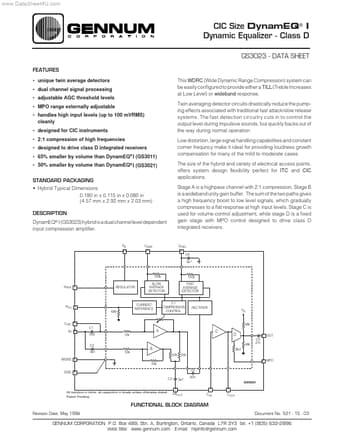

datasheet Preview Page 1 from Datasheet4u.com

GS3023_Gennum.pdf

GS3023 Datasheet Preview — Preview of GS3023 PDF

Datasheet Details

Part number:

GS3023

Manufacturer:

Gennum

File Size:

180.75 KB

Description:

CIC Size DynamEQ I Dynamic Equalizer

Features

* unique twin average detectors
* dual channel signal processing
* adjustable AGC threshold levels
* MPO range externally adjustable
* handles high input levels (up to 100 mVRMS) cleanly
* designed for CIC instruments
* 2:1 compression of high

Applications

* Stage A is a highpass channel with 2:1 compression, Stage B is a wideband unity gain buffer. The sum of the two paths gives a high frequency boost to low level signals, which gradually compresses to a flat response at high input levels. Stage C is used for volume control adjustment, while stage D i
