GS3024A

CLASS-D HYBRID

GS3024A Features

* small outline for CIC applications

* designed to drive class D integrated receivers

* on chip voltage regulator for improved end of battery life operation

* adjustable symmetrical peak clipper for MPO control

* low current drain (150 µA typical) STANDARD PAC

GS3024A General Description

The GS3024A is a Gennum proprietary hybrid for CIC applications. It incorporates a newly designed integrated circuit which offers optimum performance in class D receiver applications. The system consists of a voltage regulator, a single low noise inverting preamplifier and a mid supply referenced ou.

GS3024A Datasheet (121.95 KB)

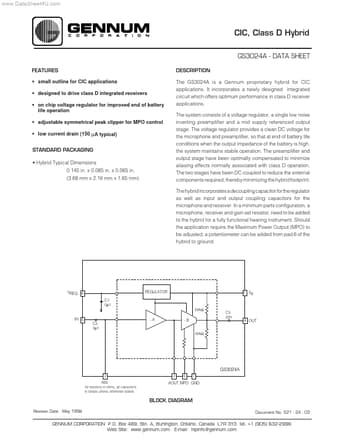

Preview of GS3024A PDF

Datasheet Details

Part number:

GS3024A

Manufacturer:

Gennum Corporation

File Size:

121.95 KB

Description:

Class-d hybrid.
