GS302 Datasheet - Matrixopto

GS302 Programmable Linear Hall-Effect

Matrix Opto Co., Ltd -GS302 Programmable Linear Hall-Effect IC- GS302 Programmable Linear Hall-Effect IC GaAs + Si Hybrid Programmable Linear Hall-Effect IC Single power supply：VDD 3V ~ 5.5V Analog Fixed or Ratiometric Output Wide ambient Temperature Range : Ta -40℃ ~ 125℃ Quick response for magnetic field with wide bandwidth Programmable via One Wire Interface at Vout Pin Output Characteristics Figure1. Definition of sensitivity direction Figure 2. Output Ch.

GS302 Datasheet (864.42 KB)

Preview of GS302 PDF

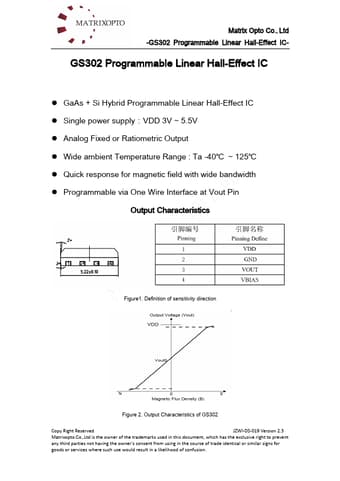

GS302 Datasheet Preview Page 2 GS302 Datasheet Preview Page 3

Datasheet Details

Part number:

GS302

Manufacturer:

Matrixopto

File Size:

864.42 KB

Description:

Programmable linear hall-effect.
