GS3013

Linear Class H Current Manager Hybrid

GS3013 Features

* complete linear system

* current mode class H output stage

* current drive power amp

* low distortion / low noise

* low amplifier current 190 µA typical STANDARD PACKAGING

* Hybrid Typical Dimensions 0.225in x 0.130in x 0.110in (5.72mm x 3.31mm x 2.7

GS3013 General Description

The GS3013 is a linear hybrid containing three amplifier stages. This product incorporates a current mode class H power amplifier. By adapting the bias of the output stage to the requirements of the signal being processed, significant current savings can be realised compared to traditional class A a.

GS3013 Datasheet (120.50 KB)

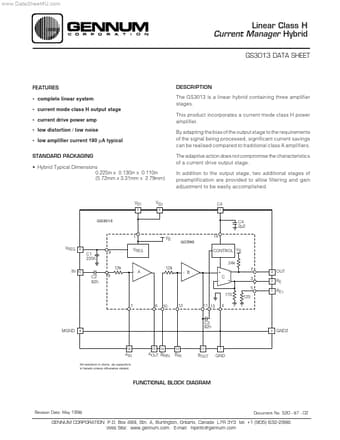

Preview of GS3013 PDF

Datasheet Details

Part number:

GS3013

Manufacturer:

Gennum

File Size:

120.50 KB

Description:

Linear class h current manager hybrid.
