SC21152 Datasheet, Regulator, Semtech

SC21152 Features

  • Regulator
  • Input voltage range
      – 2.3V to 5.5V
  • 1.2A continuous output current
  • 4MHz switching frequency
  • Adjustable Output Voltage
  • 1%

PDF File Details

Part number:

SC21152

Manufacturer:

Semtech

File Size:

1.23MB

Download:

📄 Datasheet

Description:

Tiny 1.2a synchronous buck regulator. The SC21152 is an ultra high efficiency 1.2A DC/DC buck regulator available in a small MLPD package. These features make the SC21152

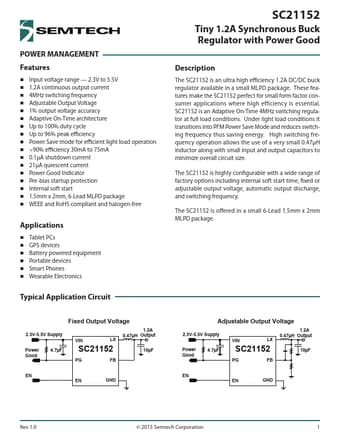

Datasheet Preview: SC21152 📥 Download PDF (1.23MB)
Page 2 of SC21152 Page 3 of SC21152

SC21152 Application

  • Applications
  • Tablet PCs
  • GPS devices
  • Battery powered equipment
  • Portable devices
  • Smart Phones
  • <
