SC21150 Datasheet, Regulator, Semtech

SC21150 Features

  • Regulator
  • Input voltage range
      – 2.3V to 5.5V
  • 1.2A continuous output current
  • 4MHz switching frequency
  • Adjustable Output Voltage 0.8

PDF File Details

Part number:

SC21150

Manufacturer:

Semtech

File Size:

0.98MB

Download:

📄 Datasheet

Description:

Tiny 1.2a synchronous buck regulator. The SC21150 is an ultra high efficiency 1.2A DC/DC buck regulator available in a tiny CSP package. These features make the SC21150 fa

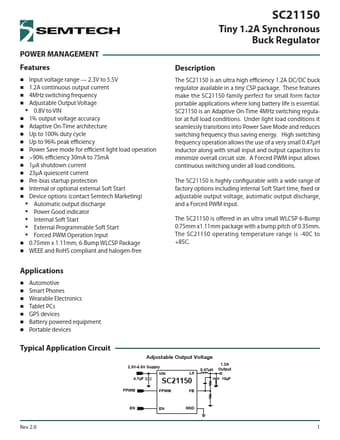

Datasheet Preview: SC21150 📥 Download PDF (0.98MB)
Page 2 of SC21150 Page 3 of SC21150

SC21150 Application

  • Applications where long battery life is essential. SC21150 is an Adaptive On-Time 4MHz switching regulator at full load conditions. Under light load
