SMC2355DSQ - Dual P-Channel MOSFET

Datasheet Summary

Description

SMC2355DSQ is the Dual P-Channel enhancement mode power field effect transistors are using trench DMOS technology.

This advanced trench technology devices are well suited for high efficiency fast switching applications.

a : Company name.

Features

  • VDS=-20V, ID=-3.5A RDS(ON)=60mΩ(Typ. )@VGS=-4.5V RDS(ON)=80mΩ(Typ. )@VGS=-2.5V RDS(ON)=110mΩ(Typ. )@VGS=-1.8V.
  • Fast switch.
  • 1.8V Low gate drive.

📥 Download Datasheet

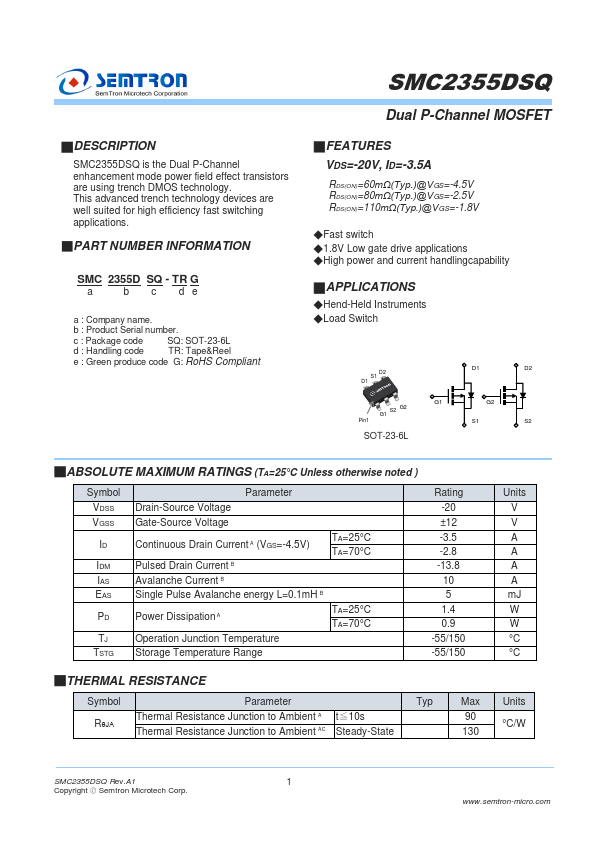

Datasheet preview – SMC2355DSQ

Datasheet Details

Part number SMC2355DSQ
Manufacturer Semtron
File Size 282.77 KB
Description Dual P-Channel MOSFET
Datasheet download datasheet SMC2355DSQ Datasheet

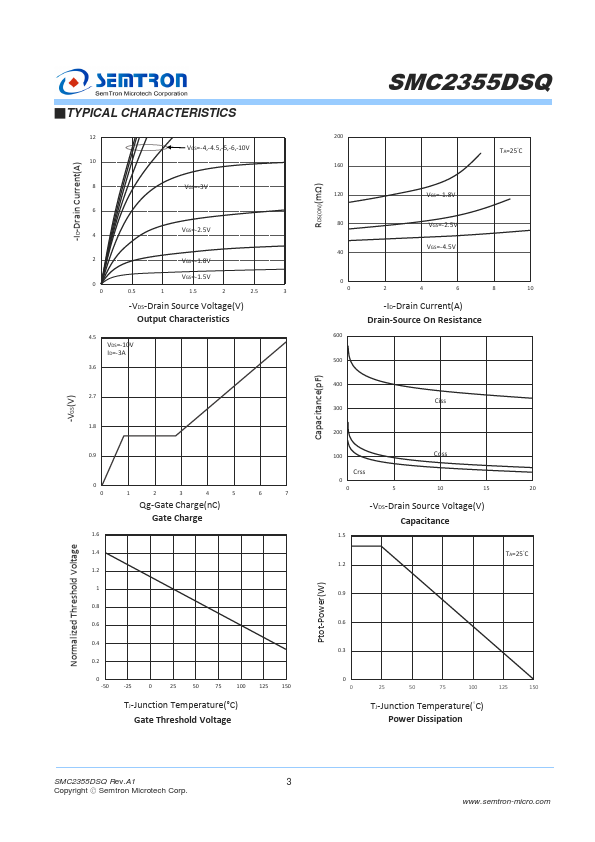

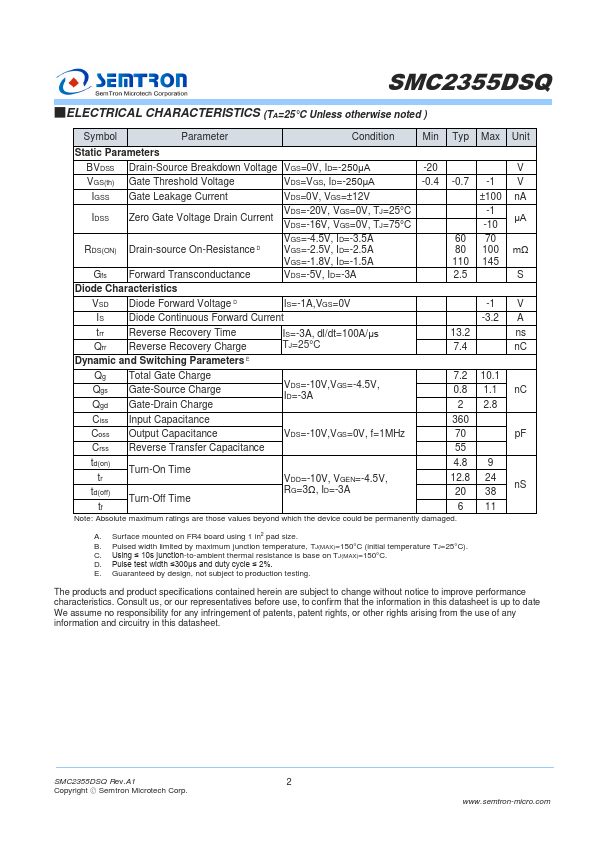

Additional preview pages of the SMC2355DSQ datasheet.

📁 Similar Datasheet

  • SMC20 - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)
  • SMC20 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS (MIC)
  • SMC200 - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)
  • SMC200A - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)
  • SMC200C - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)
  • SMC200CA - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)
  • SMC202LY - LED Display (American Opto Plus LED)
  • SMC202PG - LED Display (American Opto Plus LED)
  • SMC20A - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)
  • SMC20A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS (MIC)
Other Datasheets by Semtron

Full PDF Text Transcription

Click to expand full text
■DESCRIPTION SMC2355DSQ is the Dual P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced trench technology devices are well suited for high efficiency fast switching applications. ■PART NUMBER INFORMATION SMC 2355D SQ - TR G a b c de a : Company name. b : Product Serial number. c : Package code SQ: SOT-23-6L d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant SMC2355DSQ Dual P-Channel MOSFET ■FEATURES VDS=-20V, ID=-3.5A RDS(ON)=60mΩ(Typ.)@VGS=-4.5V RDS(ON)=80mΩ(Typ.)@VGS=-2.5V RDS(ON)=110mΩ(Typ.)@VGS=-1.8V ◆Fast switch ◆1.
