SMC4270S6 Datasheet - Semtron

Common-Drain Dual N-Channel MOSFET

SMC4270S6 Features

* VDS = 20V, ID = 6.7A RDS(ON) =16mΩ(Typ.)@VGS = 4.5V RDS(ON) =17mΩ(Typ.)@VGS = 4.0V RDS(ON) =18mΩ(Typ.)@VGS = 3.2V RDS(ON) =20mΩ(Typ.)@VGS = 2.5V RDS(ON) =24mΩ(Typ.)@VGS = 1.8V

* Fast switch

* High power and current handling capability

* Exceptional on-resistance

* APPLICATIONS

* P

SMC4270S6 General Description

SMC4270 is the Dual N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced trench technology to provide excellent RDS(ON). These devices are well suited for high efficiency fast switching applications, low in-line power loss are needed in small outl.

SMC4270S6 Datasheet (326.63 KB)

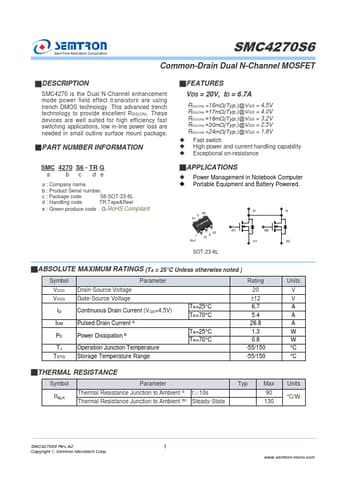

Preview of SMC4270S6 PDF

Datasheet Details

Part number:

SMC4270S6

Manufacturer:

Semtron

File Size:

326.63 KB

Description:

Common-drain dual n-channel mosfet.
