SMC4240DM Datasheet - Semtron

Dual N-Channel MOSFET

SMC4240DM Features

* VDS=40V, ID=8A RDS(ON)=15mΩ(Typ.)@VGS=10V RDS(ON)=18mΩ(Typ.)@VGS=4.5V

* 100% EAS Guaranteed

* Improved dv/dt capability

* High power and current handling capability

* APPLICATIONS

* Power Management

* DC/DC Power System

* Load Switch D2 D2 D1 D1 D1 D2 G1 G2 G2 S2 G1 S1

SMC4240DM General Description

SMC4240DM is the dual N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance.This device is ideal for load switch applications. *PART NUMBER INFORMATION SMC 4240D M - TR G.

SMC4240DM Datasheet (287.45 KB)

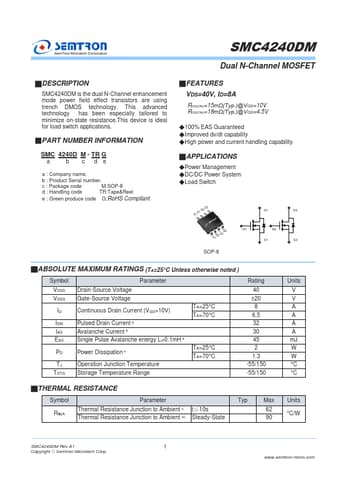

Preview of SMC4240DM PDF

Datasheet Details

Part number:

SMC4240DM

Manufacturer:

Semtron

File Size:

287.45 KB

Description:

Dual n-channel mosfet.
