SMC4732PA Datasheet - Semtron

Single N-Channel MOSFET

SMC4732PA Features

* VDS = 30V, ID = 50A RDS(ON)=2.9mΩ(Typ.)@VGS= 10V RDS(ON)=4.3mΩ(Typ.)@VGS= 4.5V

* Low Gate Charge

* 100% UIS and Rg tested

* High power and current handling capability

* APPLICATIONS

* POL Applications

* DC/DC Converters DDDD SS SG Pin 1 DFN5X6A-8 D G S

* ABSOLUTE MAXIMUM RATI

SMC4732PA General Description

SMC4732 is the N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior, fast switching performance, and withstand high energy pulse in the avalanche and commuta.

SMC4732PA Datasheet (342.22 KB)

Preview of SMC4732PA PDF

Datasheet Details

Part number:

SMC4732PA

Manufacturer:

Semtron

File Size:

342.22 KB

Description:

Single n-channel mosfet.

📁 Related Datasheet

SMC4732 N-Channel Enhancement Mode MOSFET (Semtron)

SMC4733PA Single P-Channel MOSFET (Semtron)

SMC4734 N-Channel Enhancement Mode MOSFET (Semtron)

SMC4735 P-Channel Enhancement Mode MOSFET (Semtron)

SMC4738 N-Channel Enhancement Mode MOSFET (Semtron)

SMC4738PA Single N-Channel MOSFET (Semtron)

SMC47 SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)

SMC47A SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)

SMC47C SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)

SMC47CA SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)

TAGS

SMC4732PA Single N-Channel MOSFET Semtron

Image Gallery

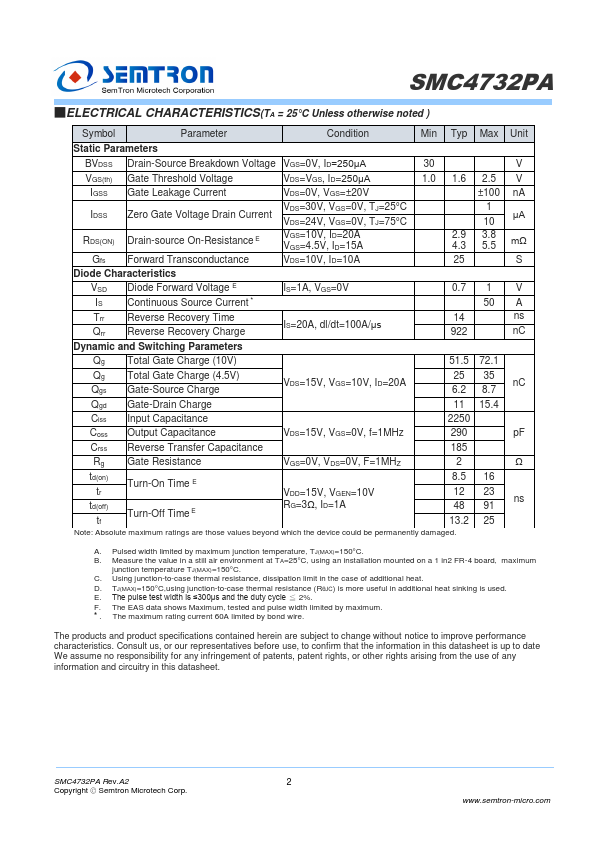

SMC4732PA Datasheet Preview Page 2 SMC4732PA Datasheet Preview Page 3
