SMC4733PA Single P-Channel MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

SMC4733PA Single P-Channel MOSFET *.
SMC4733PA is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology.

📥 Download Datasheet

Preview of SMC4733PA PDF

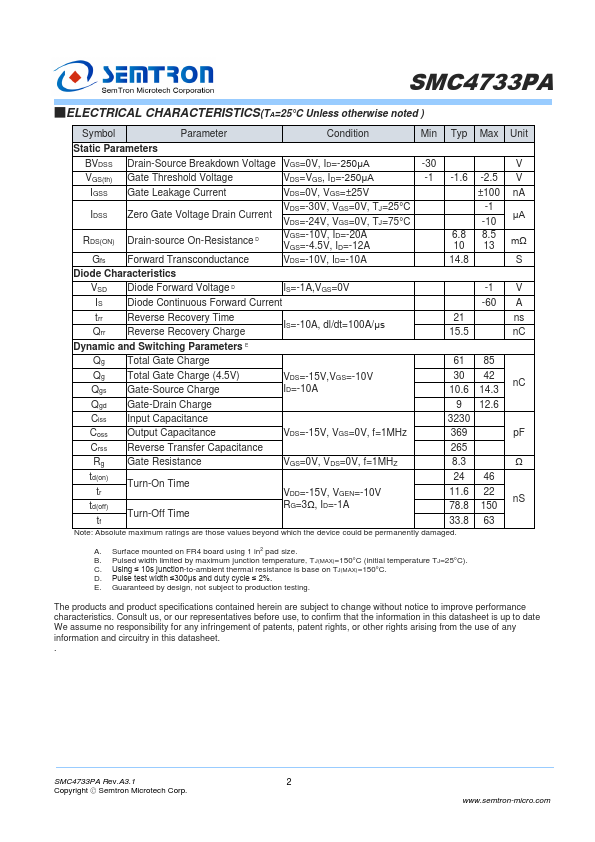

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SMC4733PA
Manufacturer
Semtron
File Size
315.50 KB
Datasheet
SMC4733PA-Semtron.pdf
Description
Single P-Channel MOSFET

Features

* VDS=-30V, ID=-60A RDS(ON)=6.8mΩ(Typ. )@VGS=-10V RDS(ON)=10mΩ(Typ. )@VGS=-4.5V
* 100% EAS Guaranteed
* High power and current handling capability

Applications

* PART NUMBER INFORMATION SMC 4733 PA - TR G a b c de a : Company name. b : Product Serial number. c : Package code PA:DFN5X6A-8 d : Handling code TR:Tape&Reel e : Green produce code G:RoHS Compliant
