SMC5225H

Single P-Channel MOSFET

Semtron

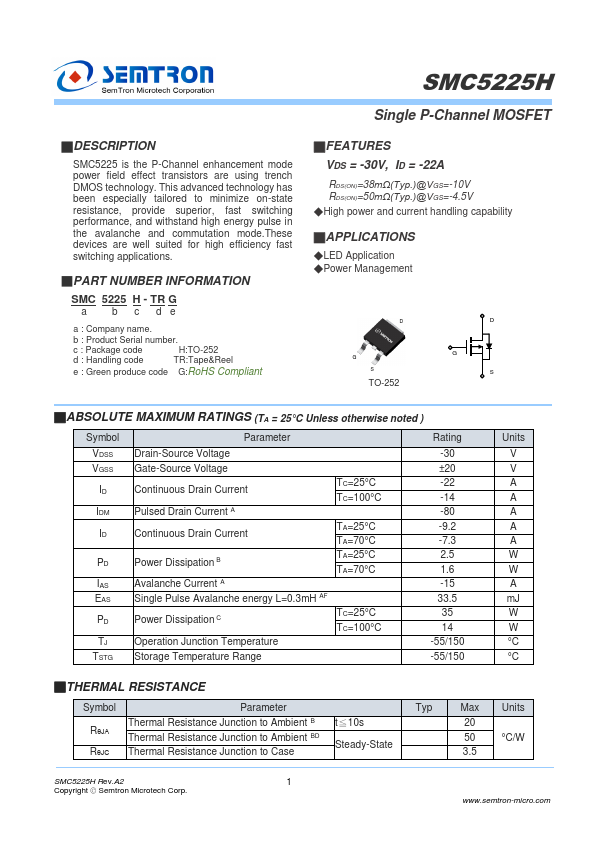

SMC5225H Features

* VDS = -30V, ID = -22A RDS(ON)=38mΩ(Typ.)@VGS=-10V RDS(ON)=50mΩ(Typ.)@VGS=-4.5V

* High power and current handling capability

* APPLICATIONS

* LED Application

* Power Management D G S TO-252 D G S

* ABSOLUTE MAXIMUM RATINGS (TA = 25°C Unless otherwise noted ) Symbol VDSS VGSS ID IDM

SMC5225H General Description

SMC5225 is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior, fast switching performance, and withstand high energy pulse in the avalanche and commuta.

SMC5225H Datasheet (394.36 KB)

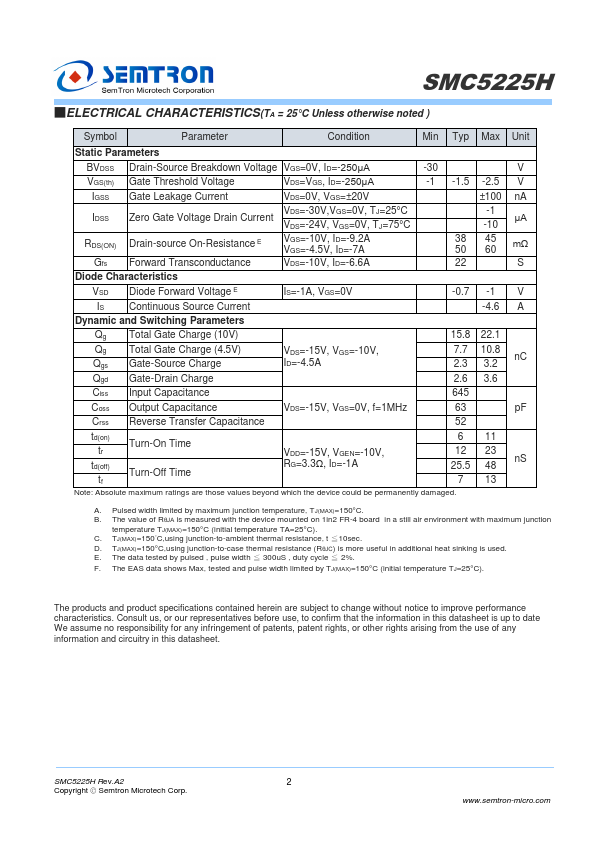

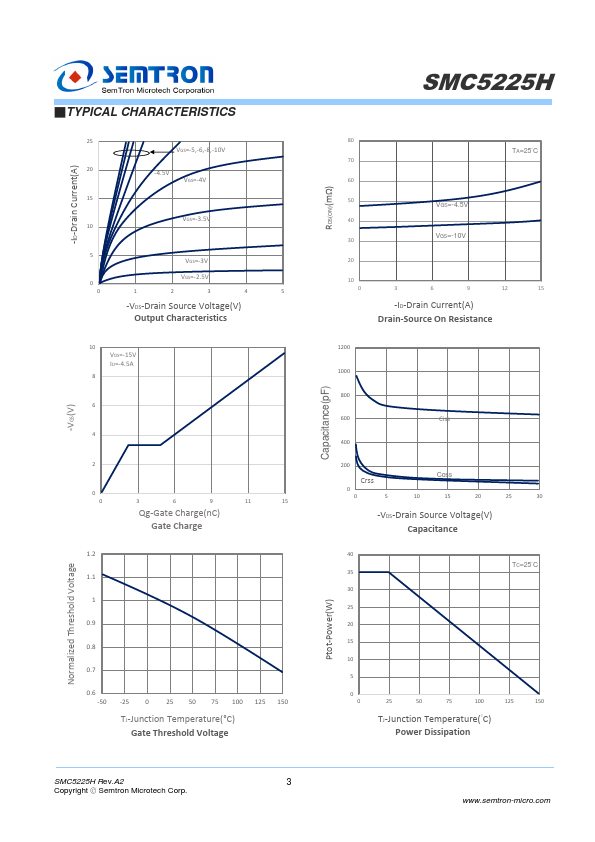

SMC5225H Datasheet Preview — Preview of SMC5225H PDF

Datasheet Details

Part number:

SMC5225H

Manufacturer:

Semtron

File Size:

394.36 KB

Description:

Single p-channel mosfet.
