STN8205A 20V N-Channel Enhancement Mode MOSFET

STN8205A Description

N-Channel Enhancement Mode MOSFET STN8205A *.
20V N-Channel Enhancement Mode MOSFET. FEATURE The STN8205A is the Dual N-Channel logic enhancement mode power field effect transistor which is.

STN8205A Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* PIN CONFIGURATION D G2 G1 D S2 S1 SOT-23-6L Top View
* PART NUMBER INFORMATION ST N 8205A S

📥 Download Datasheet

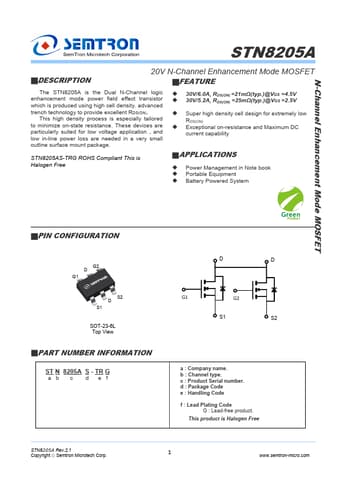

Preview of STN8205A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STN8205A
Manufacturer
Semtron
File Size
405.67 KB
Datasheet
STN8205A-Semtron.pdf
Description
20V N-Channel Enhancement Mode MOSFET
