RSC-360, RSC-364 Datasheet - Sensory

RSC-360 - (RSC-360 / RSC-364) Speech Recognition Microcontroller

S The RSC-300/364, a from the Interactive Speech family of t products, is designed specifically for a speech applications in consumer electronic D products.

.

w The RSC-300/364 combines an 8-bit processor with w neural-net algorithms to provide high-quality U 4 t .

m o c RSC-300/364 Speech Recog

w speaker-independent speech recognition, speakerdependent speech recognition, and speaker verification.

The chip also supports speech synthesis, voice record/playback, 4-voice music synthesis, and system control.

This CMOS device includes on-chip RAM, ROM (RSC-364 only), 16 general-purpose I/O lines, A/D and D/A converters, a microphone pre-amplifier, and a 4-MIPS dedicated processor.

The RSC-300 is designed for ROM-less applications that need more ROM space and consequently use off-chip memory

RSC-360 Features

* High-Performance Processor 4-MIPS performance at 14.32 MHz 16 general purpose I/O lines Interrupts, timers and counters Fully static operation; clock rate: DC to 14.32 MHz Highly-Integrated Single-Chip Solution Internal 64 kB of ROM (364 only), 2.5 kB of RAM 12 bit A/D (Analog to Digital) converter

RSC-364_Sensory.pdf

This datasheet PDF includes multiple part numbers: RSC-360, RSC-364. Please refer to the document for exact specifications by model.

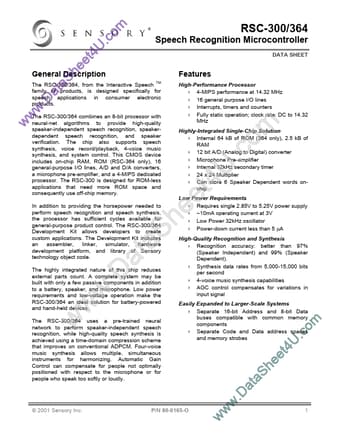

RSC-360 Datasheet Preview Page 2 RSC-360 Datasheet Preview Page 3

Datasheet Details

Part number:

RSC-360, RSC-364

Manufacturer:

Sensory

File Size:

512.71 KB

Description:

(rsc-360 / rsc-364) speech recognition microcontroller.

Note:

This datasheet PDF includes multiple part numbers: RSC-360, RSC-364.
Please refer to the document for exact specifications by model.
