RSC-364 Datasheet - Sensory

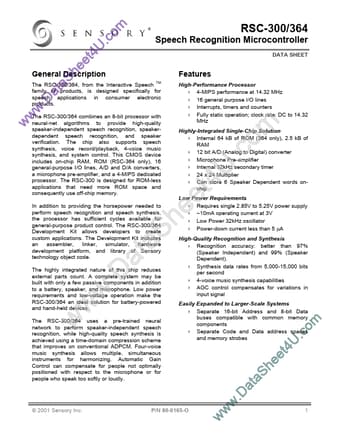

RSC-364 (RSC-360 / RSC-364) Speech Recognition Microcontroller

S The RSC-300/364, a from the Interactive Speech family of t products, is designed specifically for a speech applications in consumer electronic D products. . w The RSC-300/364 combines an 8-bit processor with w neural-net algorithms to provide high-quality U 4 t . m o c RSC-300/364 Speech Recog.

w speaker-independent speech recognition, speakerdependent speech recognition, and speaker verification. The chip also supports speech synthesis, voice record/playback, 4-voice music synthesis, and system control. This CMOS device includes on-chip RAM, ROM (RSC-364 only), 16 general-purpose I/O lines, A/D and D/A converters, a microphone pre-amplifier, and a 4-MIPS dedicated processor. The RSC-300 is designed for ROM-less applications that need more ROM space and consequently use off-chip memory.

RSC-364 Features

* High-Performance Processor 4-MIPS performance at 14.32 MHz 16 general purpose I/O lines Interrupts, timers and counters Fully static operation; clock rate: DC to 14.32 MHz Highly-Integrated Single-Chip Solution Internal 64 kB of ROM (364 only), 2.5 kB of RAM 12 bit A/D (Analog to Digital) converter

RSC-364 Datasheet (512.71 KB)
