H8050 Datasheet - Shantou Huashan Electronic Devices

H8050 NPN SILICON TRANSISTOR

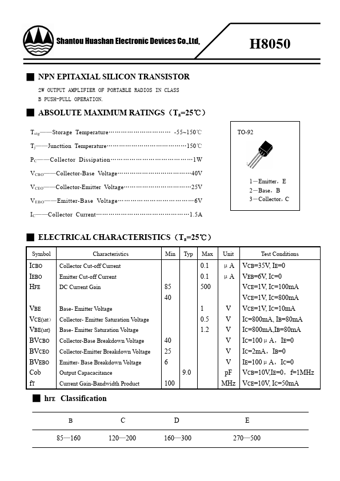

Shantou Huashan Electronic Devices Co.,Ltd. H8050 NPN EPITAXIAL SILICON TRANSISTOR 2W OUTPUT AMPLIFIER OF PORTABLE RADIOS IN CLASS B PUSH-PULL OPERATION. ABSOLUTE MAXIMUM RATINGS（Ta=25℃） Tstg Storage Temperature………………………… -55~150℃ Tj Juncttion Temperature…………………………………150℃ PC Collector Dissipation…………………………………1W VCBO Collector-Base Voltage………………………………40V VCEO Collector-Emitter Voltage……………………………25V .

H8050_ShantouHuashanElectronicDevices.pdf
