WXD3540

Precision Wirewound Potentiometer

WXD3540 Features

* Multiturn / Wirewound / Industrial

* Metal shaft and bushings

* Bushing mount

* Available with shaft (6mm dia.) WXD3540 Electrical Characteristics Standard Resistance Range 100 to 100K ohms (see standard resistance table) Resistance Tolerance ±5% std. Independent Linearity ±0.25% Eff

WXD3540 Datasheet (406.47 KB)

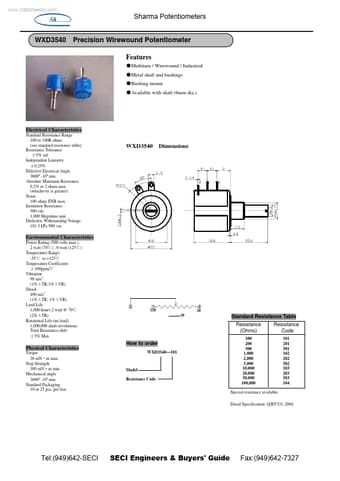

Preview of WXD3540 PDF

Datasheet Details

Part number:

WXD3540

Manufacturer:

Sharma Electro

File Size:

406.47 KB

Description:

Precision wirewound potentiometer.
