6N135 Datasheet, photocoupler equivalent, Sharp Electrionic Components

6N135 Features

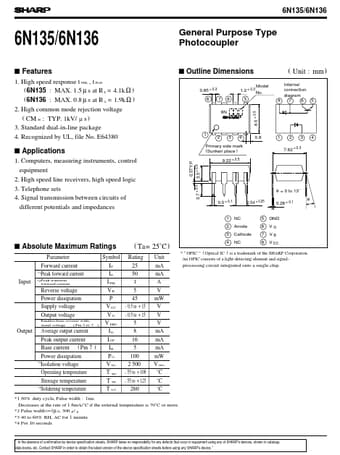

• Photocoupler 1. High speed response t PHL , t PLH ( 6N135 : MAX. 1.5 µ s at R L = 4.1k Ω ) ( 6N136 : MAX. 0.8 µ s at R L = 1.9k Ω ) 2. High common mode rejection voltage ( CM H : TYP. 1kV/ µ s ) 3.

PDF File Details

Part number:

6N135

Manufacturer:

Sharp Electrionic Components

File Size:

72.17kb

Download:

📄 Datasheet

Description:

General purpose type photocoupler.

6N135 Application

• Applications 1. Computers, measuring instruments, control equipment 2. High speed line receivers, high speed logic 3. Telephone sets 4. Signal trans
