LH28F004SU-NC - 4M (512K bb 8) Flash Memory

Product Overview

Sharp Electrionic Components

Part number	LH28F004SU-NC
Manufacturer	Sharp Electrionic Components
File Size	246.41 KB
Description	4M (512K bb 8) Flash Memory
Datasheet	LH28F004SU-NC Datasheet
Additional preview pages of the LH28F004SU-NC datasheet.

SYMBOL TYPE NAME AND FUNCTION WORD-SELECT ADDRESSES: Select a word within one 16K block.

40-PIN TSOP 4M (512K × 8) Flash Memory TOP VIEW.
512K × 8 Word Configuration.
5 V Write/Erase Operation (5 V VPP).

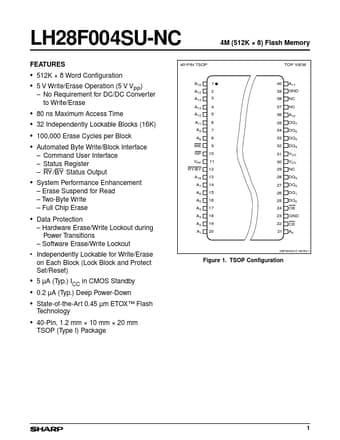

No Requirement for DC/DC Converter to Write/Erase A16 A15 A14 A13 A12 A11 A9 A8 WE RP VPP RY/BY A18 A7 A6 A5 A4 A3 A2 A1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 A17 GND NC NC A10 DQ7 DQ6 DQ5 DQ4 VCC VCC NC DQ3 DQ2 DQ1 DQ0 OE GND CE A0.
