LH5164ASH - CMOS 64K (8K x 8) Static RAM

Datasheet Summary

Description

The LH5164ASH is a static RAM organized as 8,192 × 8 bits.

It is fabricated using silicon-gate CMOS process technology.

It is designed for 2.5 to 5.5 V low voltage operation and wide temperature range from -40 to +85°C.

Features

  • 8,192 × 8 bit organization.
  • Access time: 500 ns (MAX. ).
  • Power consumption: Operating: 60 mW (MAX. ) @ 3 V Standby: 3 µW (MAX. ) @ 70 °C @ 3 V 9 µW (MAX. ) @ 85 °C @ 3 V.
  • Fully-static operation.
  • Three-state outputs.
  • Wide operating voltage range: 2.5 V to 5.5 V.
  • TTL compatible I/O.
  • Wide temp. range tOPR: -40 to +85°C.
  • Packages: 28-pin, 450-mil SOP 28-pin, 8 × 13 mm2 TSOP (Type I).

📥 Download Datasheet

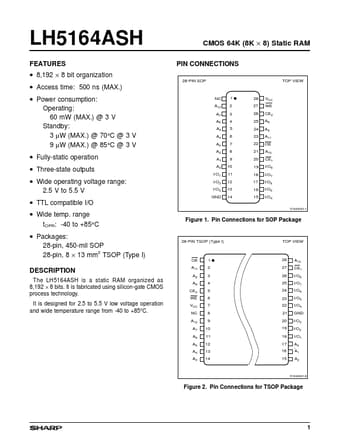

Datasheet preview – LH5164ASH
