LH5164AV - CMOS 64K (8K x 8) Static RAM

Datasheet Summary

Description

The LH5164AV is a static RAM organized as 8,192 × 8 bits.

It is fabricated using silicon-gate CMOS process technology.

Features

8,192 × 8 bit organization.
Access time: 200 ns (MAX. ).
Supply current (MAX. ): Operating: 248 mW 55 mW (tRC, tWC = 1 µs) Standby: 5.5 µW Data retention: 0.6 µW (VCC = 3 V, tA = 25°C).
Wide operating voltage range: 2.7 V to 5.5 V.
Fully-static operation.
TTL compatible I/O.
Three-state outputs.
Packages: 28-pin, 450-mil SOP 28-pin, 8 × 13 mm2 TSOP (Type I).

Datasheet Details

Part number	LH5164AV
Manufacturer	Sharp Electrionic Components
File Size	85.00 KB
Description	CMOS 64K (8K x 8) Static RAM
Datasheet	LH5164AV Datasheet
Additional preview pages of the LH5164AV datasheet.

📁 Similar Datasheet

LH5164A-10LF - 64K Static RAM (Sharp)

LH5160HN-10L - 64K-Bit SRAM (Sharp)

LH5168 - CMOS 64K Static RAM (Sharp)

LH5168V2 - CMOS 64K Static RAM (Sharp)

LH5116NA-10 - 16K CMOS STATIC RAM (Sharp Electrionic)

LH51256 - CMOS 256K Static RAM (Sharp)

LH51256L - CMOS 256K Static RAM (Sharp)

LH5047 - (LH5047 / LH5048) CMOS 6-Bit D/A Converter (Sharp)

LH5048 - (LH5047 / LH5048) CMOS 6-Bit D/A Converter (Sharp)

LH5070GCZ1.LW01 - High Power Green LED (Wellypower)

Full PDF Text Transcription

Click to expand full text

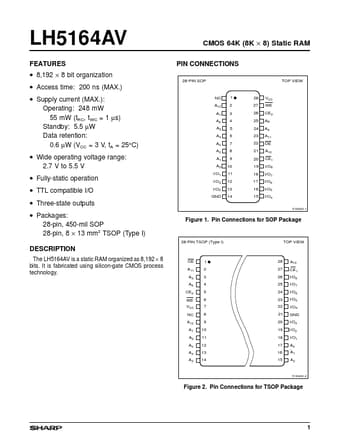

LH5164AV FEATURES • 8,192 × 8 bit organization • Access time: 200 ns (MAX.) • Supply current (MAX.): Operating: 248 mW 55 mW (tRC, tWC = 1 µs) Standby: 5.5 µW Data retention: 0.6 µW (VCC = 3 V, tA = 25°C) • Wide operating voltage range: 2.7 V to 5.5 V • Fully-static operation • TTL compatible I/O • Three-state outputs • Packages: 28-pin, 450-mil SOP 28-pin, 8 × 13 mm2 TSOP (Type I) DESCRIPTION The LH5164AV is a static RAM organized as 8,192 × 8 bits. It is fabricated using silicon-gate CMOS process technology.
