LT1U67A Datasheet - Sharp Electrionic Components

LT1U67A 1608 Size/ 0.8mm Thickness/ Leadless Chip LED Devices

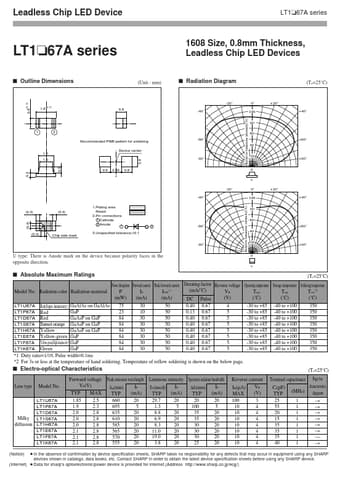

Leadless Chip LED Device LT1t67A series LT1t67A series s Outline Dimensions (Unit : mm) 1608 Size, 0.8mm Thickness, Leadless Chip LED Devices s Radiation Diagram (Ta=25˚C) 0.8±0.15 -20˚ 1.6±0.15 0.8 0˚ 100 Relative luminous intensity(%) +20˚ +40˚ -40˚ 80 60 +60˚ 40 20 0 X 1 2 Recommended PWB pattern for soldering 1.2 1.0 0.5 0.8 0.85 0.8 Device center 0.8 -60˚ -80˚ +80˚ 0.3 -20˚ -40˚ Relative luminous intensity(%) 1.Plating area Resist 2.Pin connections 1 Cathode 2 Anode 1 3.Uns.

LT1U67A_SharpElectrionicComponents.pdf
