LZ0P3642 1/4-type Built-in Lens Color CCD Area Sensors

The LZ0P3641/42∫/45∫/46 are 1/4-type (4.5 mm) 350 000-pixel built-in lens color CCD (chargecoupled device) area sensors. All pixel signals can be read independently via the vertical shift register and horizontal shift register. With their small lens and WLCC-type flat package, it is possible to make.

LZ0P3642 Features

* Progressive scan

* Square pixel

* Compatible with VGA format

* Number of effective pixels : 659 (H) x 494 (V)

* Number of optical black pixels

* Horizontal : 2 front and 31 rear

* Vertical : 8 front and 2 rear

* Number of dummy bits

LZ0P3642bb_SharpElectrionicComponents.pdf

This datasheet PDF includes multiple part numbers: LZ0P3642, LZ0P3642bb. Please refer to the document for exact specifications by model.

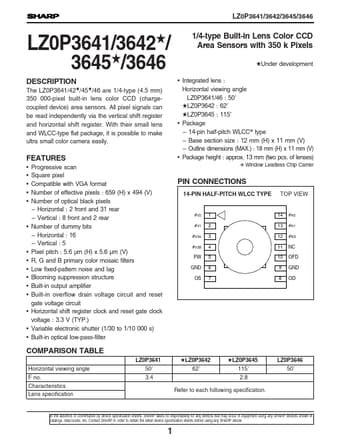

LZ0P3642 Datasheet Preview Page 2 LZ0P3642 Datasheet Preview Page 3

Datasheet Details

Part number:

LZ0P3642, LZ0P3642bb

Manufacturer:

Sharp Electrionic Components

File Size:

128.53 KB

Description:

1/4-type built-in lens color ccd area sensors.

Note:

This datasheet PDF includes multiple part numbers: LZ0P3642, LZ0P3642bb.
Please refer to the document for exact specifications by model.
