LZ0P3646

1/4-type Built-in Lens Color CCD Area Sensors

LZ0P3646 Features

* Progressive scan Square pixel Compatible with VGA format Number of effective pixels : 659 (H) x 494 (V) Number of optical black pixels

* Horizontal : 2 front and 31 rear

* Vertical : 8 front and 2 rear Number of dummy bits

* H

LZ0P3646 General Description

The LZ0P3641/42∫/45∫/46 are 1/4-type (4.5 mm) 350 000-pixel built-in lens color CCD (chargecoupled device) area sensors. All pixel signals can be read independently via the vertical shift register and horizontal shift register. With their small lens and WLCC-type flat package, it is possible to make.

LZ0P3646 Datasheet (132.04 KB)

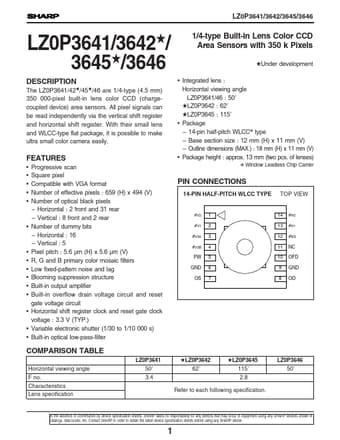

Preview of LZ0P3646 PDF

Datasheet Details

Part number:

LZ0P3646

Manufacturer:

Sharp Electrionic Components

File Size:

132.04 KB

Description:

1/4-type built-in lens color ccd area sensors.
