S102S02 Datasheet - Sharp Electrionic Components

Solid State Relays

S102S02 Features

* 1. Output current, IT(rms)≤8.0A 2. Zero crossing functionary (VOX : MAX. 35V) 3. 4 pin SIP package 4. High repetitive peak off-state voltage (VDRM : 600V, S202S02 Series) (VDRM : 400V, S102S02 Series) 5. High isolation voltage between input and output (Viso(rms) : 4.0kV) 6. Screw hole for heat sink

S102S02 General Description

S102S02 Series and S202S02 Series Solid State Relays (SSR) are an integration of an infrared emitting diode (IRED), a Phototriac Detector and a main output Triac. These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 4.0kV isolation (Viso.

S102S02 Datasheet (684.24 KB)

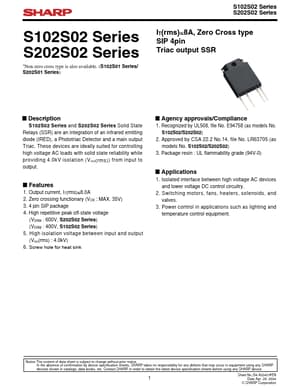

S102S02 Datasheet Preview — Preview of S102S02 PDF

Datasheet Details

Part number:

S102S02

Manufacturer:

Sharp Electrionic Components

File Size:

684.24 KB

Description:

Solid state relays.
S102S02 Series S202S02 Series ∗Non-zero cross type is also available. (S102S01 Series/ S202S01 Series) S102S02 Series S202S02 Series IT(rms)≤8A, Zero.
