S102S12 Solid State Relays

Sharp Electrionic Components

Description

S102S11/S102S12/S202S11/S202S12 S102S11/S102S12 S202S11/S202S12 s .

📥 Download Datasheet

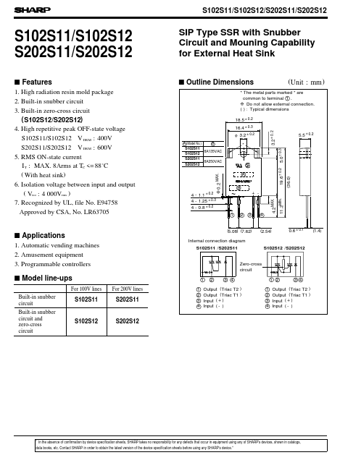

S102S12 Datasheet Preview — Preview of S102S12 PDF

Datasheet Specifications

Part number: S102S12
Manufacturer: Sharp Electrionic Components
File Size: 58.14 KB
Datasheet: S102S12_SharpElectrionicComponents.pdf
Description: Solid State Relays

Features

* 1. High radiation resin mold package 2. Built-in snubber circuit 3. Built-in zero-cross circuit ( S102S12/S202S12) 4. High repetitive peak OFF-state voltage S102S11/S102S12 V DRM : 400V S202S11/S202S12 V DRM : 600V 5. RMS ON-state current I T : MAX. 8Arms at TC

Applications

* 1. Automatic vending machines 2. Amusement equipment 3. Programmable controllers (5.08) (7.62) Internal connection diagram S102S11 / S202S11 (2.54) (1.4) S102S12 / S202S12 Zero-cross circuit 1 2 3 4 1 2 3 4 1 2 3 4 s Model line-ups For 100V lines Built-in snubber circuit Built-in snubber circu
