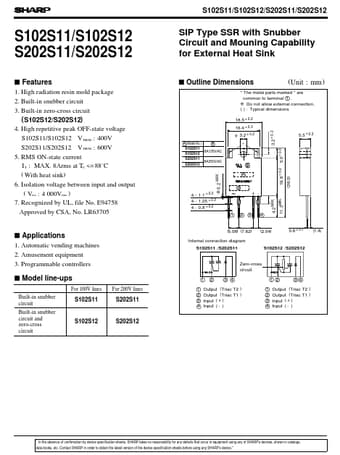

S102S11 Datasheet, Relays, Sharp Electrionic Components

S102S11 Features

• Relays 1. High radiation resin mold package 2. Built-in snubber circuit 3. Built-in zero-cross circuit ( S102S12/S202S12) 4. High repetitive peak OFF-state voltage S102S11/S102S12 V DRM : 400V

PDF File Details

Part number:

S102S11

Manufacturer:

Sharp Electrionic Components

File Size:

58.14kb

Download:

📄 Datasheet

Description:

Solid state relays.

S102S11 Application

• Applications 1. Automatic vending machines 2. Amusement equipment 3. Programmable controllers (5.08) (7.62) Internal connection diagram S102S11 / S
