S11ME6 Datasheet, Coupler, Sharp Electrionic Components

S11ME6 Features

  • Coupler 1. Internal isolation distance : 0.4mm or more 2. Creepage distance : 6.4mm or more 3. Clearance : 6.4mm or more 4. Recogized by UL file No. E64380 Approved by VDE ( DIN-VDE0884 : No.76

PDF File Details

Part number:

S11ME6

Manufacturer:

Sharp Electrionic Components

File Size:

56.69kb

Download:

📄 Datasheet

Description:

Phototriac coupler.

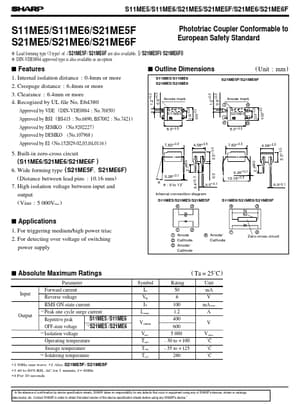

Datasheet Preview: S11ME6 📥 Download PDF (56.69kb)
Page 2 of S11ME6 Page 3 of S11ME6

S11ME6 Application

  • Applications 1. For triggering medium/high power triac 2. For detecting over voltage of switching power supply 2 1 1 Anode 2 Cathode 3 Anode/ Cathod
