S11MD4T Phototriac Coupler

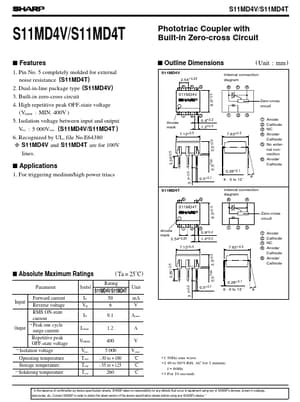

S11MD4V/S11MD4T S11MD4V/S11MD4T s .

S11MD4T_SharpElectrionicComponents.pdf

S11MD4T Datasheet Preview — Preview of S11MD4T PDF

Datasheet Details

Part number:

S11MD4T

Manufacturer:

Sharp Electrionic Components

File Size:

56.48 KB

Description:

Phototriac Coupler

Features

* 1. Pin No. 5 completely molded for external noise resistance (S11MD4T ) 2. Dual-in-line package type (S11MD4V) 3. Built-in zero-cross circuit 4. High repetitive peak OFF-state voltage (VDRM : MIN. 400V ) 5. Isolation voltage between input and output Viso : 5 000Vrms ( S11MD4V/S11MD4T ) 6. Recognized

Applications

* 1. For triggering medium/high power triacs 0.5TYP. 3.7± 0.5 0.26± 0.1 θ : 0 to 13 ˚ 0.5± 0.1 θ S11MD4T 6 S11MD4T 4 6.5± 0.5 Internal connection diagram 6 4 Zero-cross circuit 1 2 3 1 2 3 4 Anode Cathode NC Anode/ Cathode 6 Anode/ Cathode 2 1 Anode mark 2.54±0.25 7.12±0.5 3 0.9±0.2 1.2±0.3
