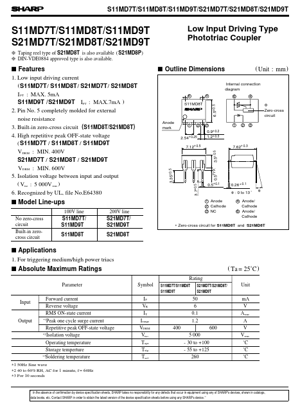

datasheet Preview Page 1 from Datasheet4u.com

S11MD8T Phototriac Coupler

S11MD7T/S11MD8T/S11MD9T/S21MD7T/S21MD8T/S21MD9T S11MD7T/S11MD8T/S11MD9T S21MD7T/S21MD8T/S21MD9T g Taping reel type of S21MD8T is also available ( S21.

S11MD8T_SharpElectrionicComponents.pdf

S11MD8T Datasheet Preview — Preview of S11MD8T PDF

Datasheet Details

Part number:

S11MD8T

Manufacturer:

Sharp Electrionic Components

File Size:

62.18 KB

Description:

Phototriac Coupler

Features

* 1. Low input driving current ( S11MD7T / S11MD8T / S21MD7T / S21MD8T I FT : MAX. 5mA S11MD9T /S21MD9T IFT : MAX.7mA ) 2. Pin No. 5 completely molded for external noise resistance 3. Built-in zero-cross circuit (S11MD8T/S21MD8T ) 4. High repetitive peak OFF-state voltage ( S11MD7T / S11MD8T / S11MD9T

Applications

* 1. For triggering medium/high power triacs s Absolute Maximum Ratings Rating Parameter Forward current Reverse voltage RMS ON-state current ∗1 Peak one cycle surge current Repetitive peak OFF-state voltage ∗2 Isolation voltage Operating temperature Storage temperture ∗3 Soldering temperature Symbol
