S11MD9T Phototriac Coupler

S11MD9T Description

S11MD7T/S11MD8T/S11MD9T/S21MD7T/S21MD8T/S21MD9T S11MD7T/S11MD8T/S11MD9T S21MD7T/S21MD8T/S21MD9T g Taping reel type of S21MD8T is also available ( S21.

S11MD9T Features

* 1. Low input driving current ( S11MD7T / S11MD8T / S21MD7T / S21MD8T I FT : MAX. 5mA S11MD9T /S21MD9T IFT : MAX.7mA ) 2. Pin No. 5 completely molded for external noise resistance 3. Built-in zero-cross circuit (S11MD8T/S21MD8T ) 4. High repetitive peak OFF-state voltage ( S11MD7T / S11MD8T / S11MD9T

S11MD9T Applications

* 1. For triggering medium/high power triacs s Absolute Maximum Ratings Rating Parameter Forward current Reverse voltage RMS ON-state current ∗1 Peak one cycle surge current Repetitive peak OFF-state voltage ∗2 Isolation voltage Operating temperature Storage temperture ∗3 Soldering temperature Symbol

📥 Download Datasheet

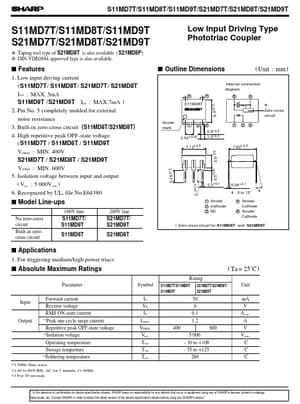

Preview of S11MD9T PDF
datasheet Preview Page 2 datasheet Preview Page 3
